An Introduction to Axure RP: Build Realistic, Functional Prototypes Rapidly

Axure RP (Rapid Prototyping) is a powerful and widely-used prototyping tool for creating interactive wireframes, mockups, and prototypes of websites and applications. It was developed by Axure Software Solutions and is available for both Windows and macOS platforms.

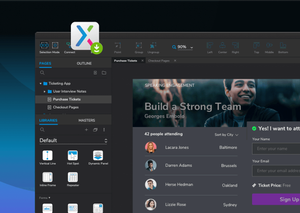

For reference, here is a quick overview of the Axure RP environment.

1. Main Toolbar and Style Toolbar: Perform common actions like arranging widgets, styling widgets, and publishing. Change the cursor tool between selection modes, connector mode, and drawing tools.
2. Canvas: Lay out widgets on this drag-and-drop environment. You can change its color and dimensions, add a grid and guides, and toggle the visibility of the rulers.
3. Pages: Add, remove, rename, and organize the pages in your file.
4. Outline: View a searchable, sortable, and filterable list of all widgets, components, and dynamic panels on the current diagram.
5. Libraries: Resource for widgets such as buttons, images, text and shapes. Drag the widgets from the Libraries pane and drop them onto the canvas. Via the Libraries pane you can switch between libraries of widgets, load additional libraries, and create your own custom libraries. You can also load folders of images from a local drive.
6. Components: Add, remove, rename and organize components, which are centrally managed sets of widgets that you can reuse throughout your file.
7. Style: Edit widget and page styling.

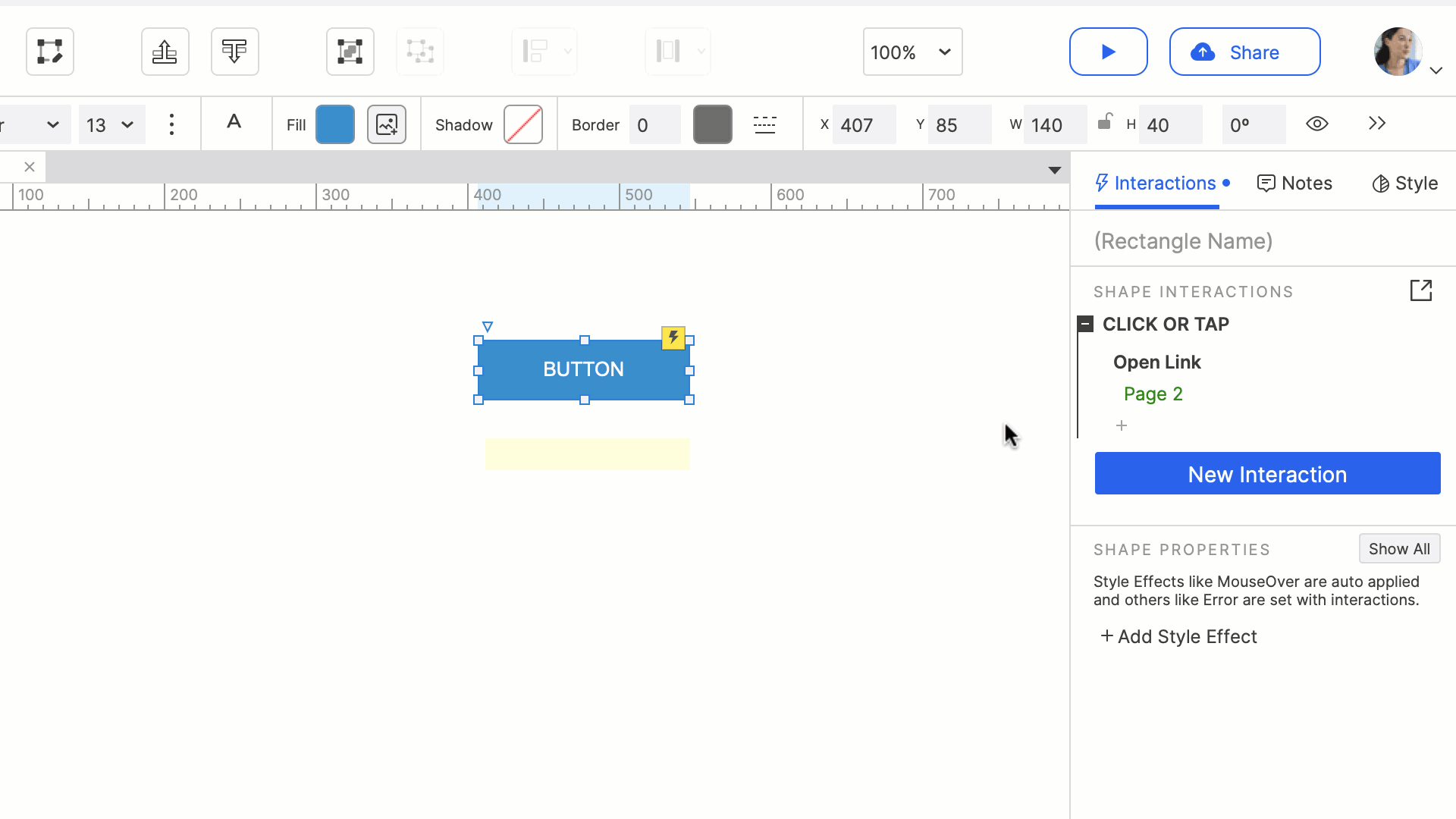

8. Interactions: Add and edit interactions and other interactive properties on the page or selected widget.
9. Notes: Add and edit widget and page notes.

Here are some key features and aspects of Axure RP:

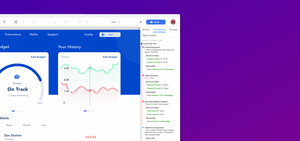

1. Interactive Prototyping: Axure RP allows designers to create highly interactive and dynamic prototypes. It provides an extensive library of pre-built UI elements, such as buttons, forms, menus, and more, which can be easily customized and combined to create realistic and functional prototypes. Interaction and animation capabilities, such as transitions, hover effects, and conditional logic, can be added to simulate user interactions and flows.

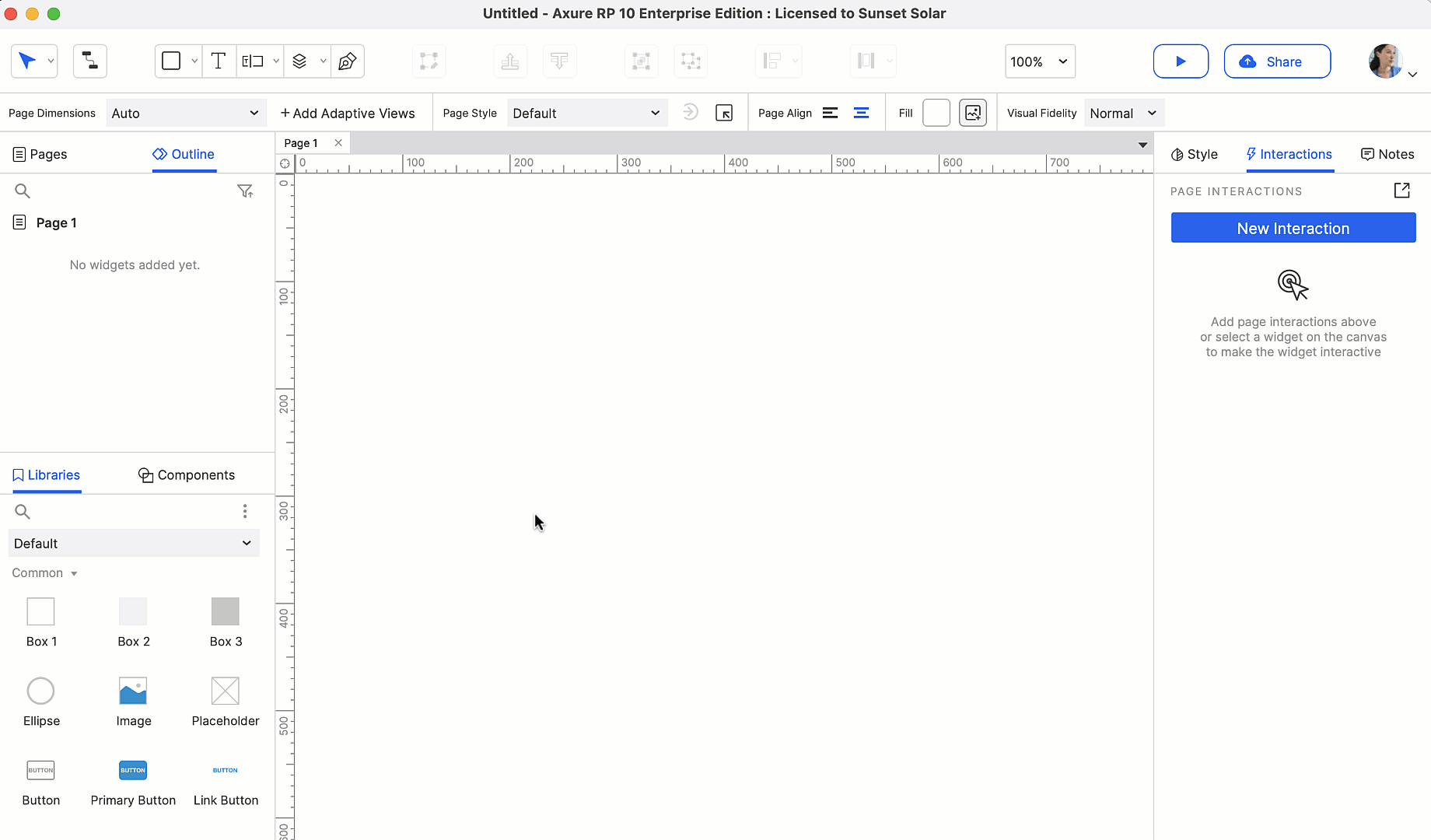

2. Drag-and-Drop Interface: Axure RP offers a user-friendly drag-and-drop interface, making it easy to create and arrange elements on the canvas. Designers can quickly prototype complex interactions by visually connecting elements and defining their behaviors without the need for coding.

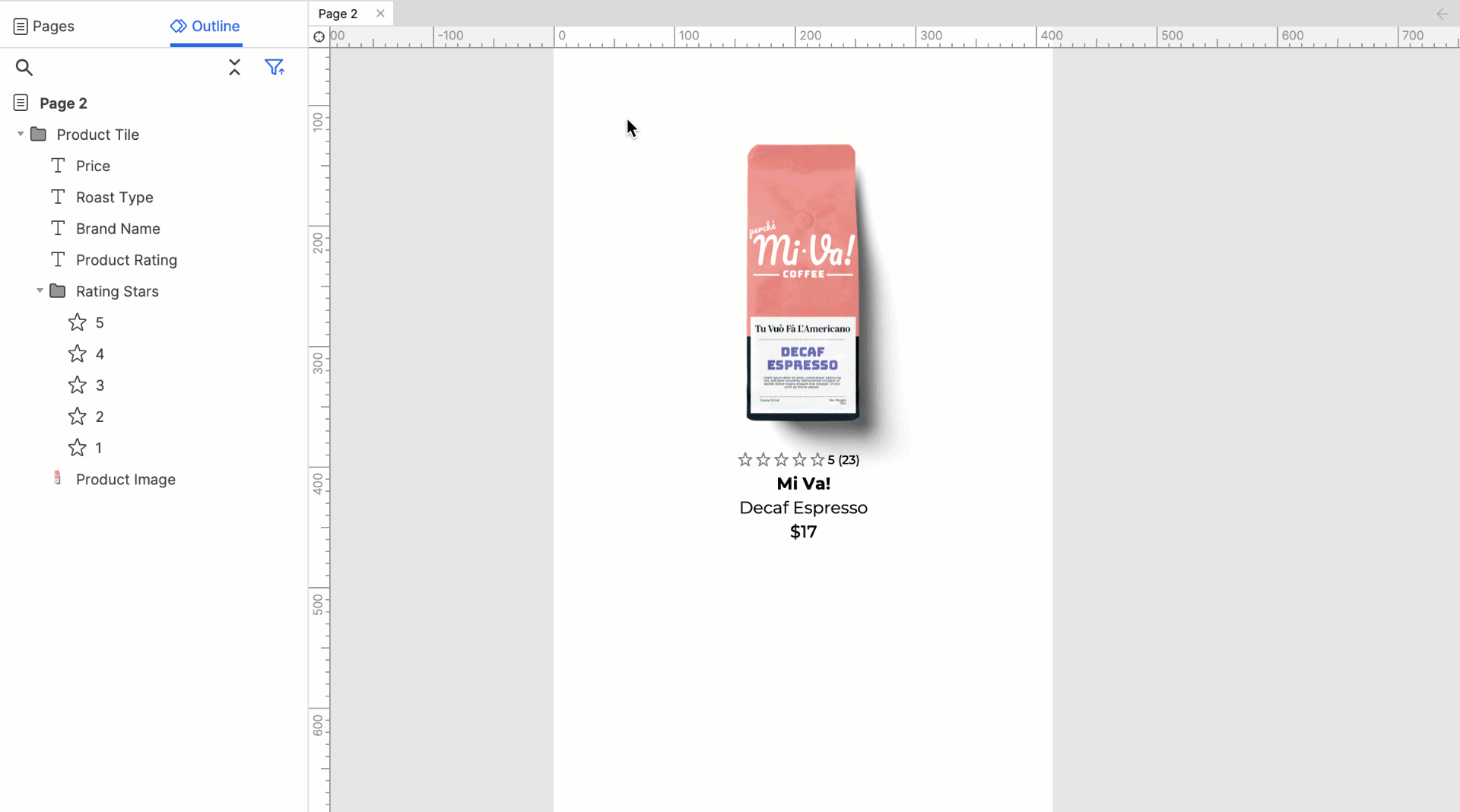

3. Dynamic Data and Variables: Axure RP allows designers to incorporate dynamic data and variables into their prototypes using Repeaters which can manage the content that displays in each instance of the repeated pattern directly from the repeater’s dataset table. This feature is particularly useful for demonstrating dynamic content, database-driven interfaces, or scenarios where data needs to change based on user inputs or system states.









4. Collaboration and Version Control: Axure RP supports collaboration among designers and stakeholders. Multiple team members can work on the same project simultaneously, and changes can be easily synced and merged. Axure also offers version control, allowing designers to track and revert to previous versions of their prototypes.

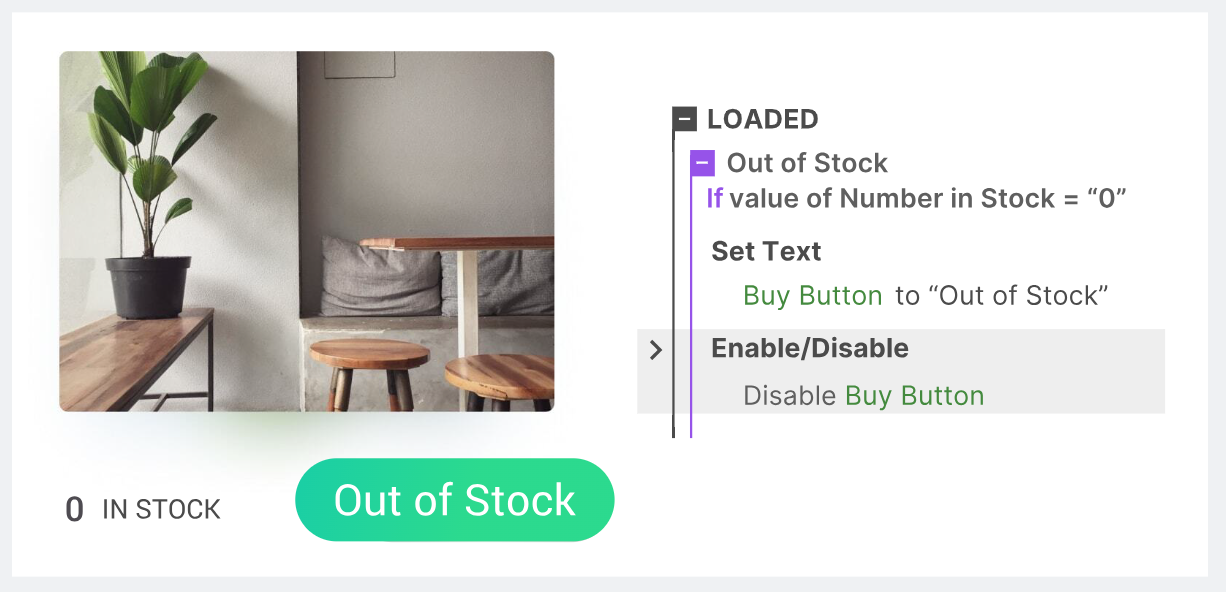

5. Conditional Logic and Adaptive Views: With Axure RP, designers can create adaptive views and define conditional logic to adapt the layout and behavior of elements based on different screen sizes or device types. This helps in creating responsive prototypes that demonstrate how the design will adapt across various devices and breakpoints.









6. Documentation and Annotations: Axure RP provides features for documenting the design and adding annotations to clarify interactions or design decisions. Designers can create specification documents, generate design documentation, and export the prototype to different formats, such as HTML, PDF, or Word.

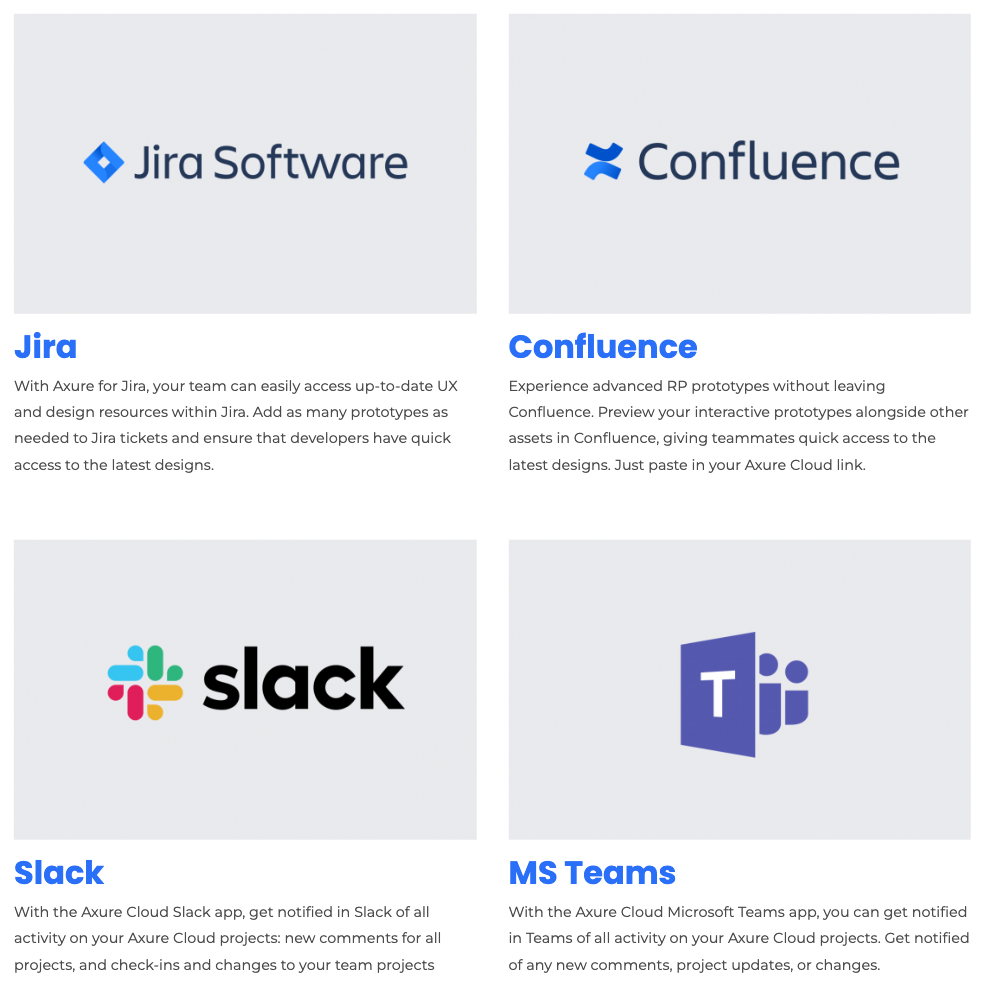

7. Integration and Sharing: Axure RP allows designers to export their prototypes for sharing and feedback. Prototypes can be published as HTML files, hosted on Axure Cloud, or shared as URLs. Additionally, Axure integrates with other design tools, project management systems, and collaboration platforms, enhancing the overall workflow and collaboration process.





8. Widgets and Components: Add, edit, and style widgets and create reusable components in Axure RP




Axure RP is widely used by UX designers, interaction designers, and product teams to create high-fidelity prototypes that closely resemble the final product. Its extensive set of features, flexibility, and interactive capabilities make it a popular choice for designing and validating user experiences before moving into development.

Pros and Cons

Axure RP has several advantages and some potential drawbacks. Here are the pros and cons of using Axure RP:

Pros:

1. Powerful Prototyping Capabilities: Axure RP is known for its robust prototyping features. It allows you to create highly interactive and dynamic prototypes that closely resemble the final product, making it easier to demonstrate and validate the user experience.

2. Flexible and Customizable Interactions: Axure RP provides a wide range of interactions and animations that can be easily customized to meet your design needs. This flexibility enables designers to create complex and realistic prototypes without the need for coding.

3. Adaptive Views and Responsive Design: With Axure RP, you can design adaptive views and define conditional logic to adapt the layout and behavior of elements based on different screen sizes or device types. This feature is valuable for creating responsive prototypes that showcase how the design adapts across various devices.

4. Collaboration and Version Control: Axure RP supports collaboration among team members, allowing multiple designers to work on the same project simultaneously. It provides features for syncing changes, merging updates, and maintaining version control, enhancing the collaborative workflow.

5. Documentation and Annotations: Axure RP offers features for documenting the design and adding annotations to clarify interactions or design decisions. This helps in creating specification documents, generating design documentation, and facilitating communication between designers, developers, and stakeholders.

Cons:

1. Steep Learning Curve: Axure RP can be complex for beginners and may have a steep learning curve. It offers a wide range of features and functionalities, which can take time to master. However, once you become familiar with the tool, it provides significant capabilities.

2. Limited Visual Design Tools: While Axure RP excels in prototyping and interactivity, it may not be as robust when it comes to visual design. Compared to dedicated graphic design software, Axure RP's visual design tools may be more basic. For complex visual design tasks, integrating with other design tools may be necessary.

3. Performance on Large Projects: Axure RP's performance can be affected when working on large and complex projects with numerous interactions and elements. This may result in slower rendering and response times, impacting productivity, especially when collaborating with larger design teams.

4. Limited Platform Support: Axure RP is primarily available for Windows and macOS, which means it may not be accessible for users on other operating systems. This limitation can impact collaboration with team members or stakeholders who use different platforms.

Overall, Axure RP is a powerful prototyping tool with extensive interactive capabilities and collaboration features. While it may have a learning curve and limitations in visual design tools, it remains a popular choice for designers who prioritize creating realistic and dynamic prototypes to communicate and validate their design concepts.
